Delta Cleaners 150 Series

EFFICIENCY AND PURITY IN THE CLEANING PROCESS

Delta Cleaners 150 Series

基于经验的咨询

准确性和仔细清洁是我们开发和生产Cimbria Delta清洁剂的关键词,所有材料和组件的质量毫不妥协。我们根据研发成就和多年的经验为各种清洁目的提供植物的建议和设计。Cimbria拥有广泛而经验丰富的服务网络,与最新的技术产品开发和清洁流程有关,始终保持最新状态。服务组织可供您确保提供最佳和最快的服务。


技术知识和经验

Inside view of Delta Cleaners 150 SeriesThe wide range of Cimbria Delta screen cleaners ensures excellent efficiency and purity in the cleaning of all kinds of crops by removing unwanted elements and potentially dangerous impurities with high precision. The efficient and gentle Delta cleaning process secures the quality and germinating capability of the seed by keeping the quantity of damaged seeds to an absolute minimum. The result is increased product value and higher earnings.

已经开发了Delta Cleaner 150系列,用于高容量的谷物,豌豆和强奸种子,以及用于铣削和麦芽大麦的谷物的工业清洁。机器的大屏幕区域具有准确匹配的中风和频率,Cimbria的高效预击和后载后系统得到了补充。

Delta Cleaners

  • Research, test and training take place at Cimbria’s full-scale seed-grain plant. On request, local test centres carry out test cleaning of any given product and determine the optimum screen perforations for special processes.

  • Delta Cleaners are available in different series with more than 30 different models to choose from offering capacities from 1 t/h fine-cleaning up to 450 t/h pre-cleaning.

EXAMPLES OF PRODUCTS CLEANED IN A DELTA CLEANER

Wheat

小麦由三角洲清洁剂清洁

Oat

Oats cleaned by Delta Cleaner.

Grass Seed

Grass Seed cleaned by Delta Cleaner.

Soya Beans

Soya Beans cleaned by Delta Cleaner.

Barley

Barley cleaned by Delta Cleaner.

Peas

Peas cleaned by Delta Cleaner.

Maize

Maize cleaned by Delta Cleaner.

Malt

Malt cleaned by Delta Cleaner.

Rice

Rice cleaned by Delta Cleaner.

Sunflower

Sunflower Seeds cleaned by Delta Cleaner.

Rapeseed

Rape Seeds cleaned by Delta Cleaner.

Coffee

Coffee Beans cleaned by Delta Cleaner.


三角洲清洁剂结构

Delta Cleaners 150系列由大型屏幕区域以及Cimbria高效的预载和后吸收系统构建。抽吸系统从机器入口和出口上的材料中提取轻质杂质。耗尽的废物,灰尘和轻量级废物沉积在膨胀室中,并通过配备多盘空气系统的排放螺旋钻将其运送到机器人插座中,以防止虚假空气进入机器。扩展室设计用于连接到单独的排气风扇。带有球盒的自我清洁屏幕(包含橡胶球)的标准尺寸使它们适合所有其他类型的三角洲屏幕清洁剂。根据要清洁的材料,它们可提供各种圆形或长圆形穿孔。

入口与振动板喂食器入口与振动板喂食器

Optimal feed over the full width of the cleaner is achieved with a shaker feeder. The shaker feeder is designed to handle all kinds of grain and seed through gentle and controlled feeding. The feeding rate is controlled through step-less speed adjustment, thus ensuring the required capacity for any application.

PRE- & AFTER-SUCTIONPRE- & AFTER-SUCTION

所有Cimbria清洁剂均配备了两个通行的空气分离系统。预先制造旨在清除机器入口处的灰尘和轻质外来材料,以减少机器内部的灰尘和罚款量。这样可以确保屏幕上的产品流动甚至均匀。后载体旨在收集剩余的果壳,并在清洁剂的最后出口处的干净谷物中罚款。

FLOWFLOW

The 150 series cleaners are designed with the option of a flexible flow system which offers the operator the possibility of using the optimum flow for a specific application. With changeable outlets and dividers the operator can change between different flows. The optimum flow ensures maximum capacity and quality.

屏幕SCREENS

The Cimbria screens are designed for highest possible efficiency and are effectively kept clean by rubber balls in special designed ball boxes. A high percentage of open area ensures maximum capacity in the machine.

The ball boxes are designed so that it is not necessary to remove the boxes for changing the screens. Like all other Delta screen cleaners the base and the frame of the 150 series screen cleaners is a very rigid construction built from heavy gauge pressed steel. The screen boats are manufactured from selected insect-resistant and moisture-resistant marine plywood.

屏幕ShoesSCREEN SHOES

The screens shoes are made in coated marine plywood to ensure a long lifetime. With its strong and flexible structure, this material is highly resistant to the constant movement in the machine. Wear areas inside the screen shoes are protected by wear plates.

ECCENTRIC SYSTEMECCENTRIC SYSTEM

The eccentric system is designed to drive the screen shoes and create a gentle flow of product through the machine. The weight of each screen shoe is optimized to ensure a wellbalanced and smooth motion. Supplied as standard with a flywheel to recapture the force created by the movement of the screens shoes and reduce power consumption.

ELECTRONIC CONTROL SYSTEMELECTRONIC CONTROL SYSTEM

The 150 series cleaners can be supplied with an electronic control system. The system consists of a control panel which operates actuators and motors with integrated frequency control. The actuators operate numerous air gates inside the machine, and with digital adjustment settings ranging from 0-100, the accuracy of the settings is very high. The electronic control system includes adjustment of the shaker feeder.

操作安全示例操作人员安全

Operator safety is our highest priority. The Cimbria cleaners are designed with covers to protect the operator from all moving parts. Samples from each outlet of the machine can be obtained through a specially designed sample port which ensures user-friendly and safe operation.


DELTA CLEANER MODELS

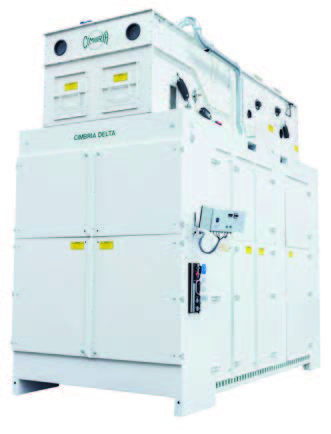

DELTA 157 CLEANER

DELTA 157 CLEANER屏幕area: 12 m2 kW

consumption: 9.95 kW

Required air volume: 3600 m3 /h

The Delta 157 cleaner is equipped with recirculating air units for pre-suction and after-suction which provide a total internal air volume of 16,000 m3/h.

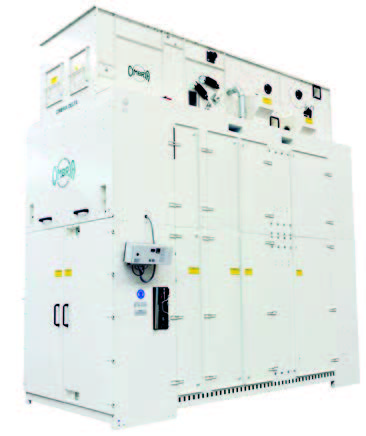

DELTA 159 CLEANER

DELTA 159 CLEANER屏幕area: 24 m2 kW

消费:4.50 kW

Required air volume: 12,000-18,000 m3/h

The Delta 159 Cleaner is equipped with an open air system for pre-suction and after-suction. This model is available in an all galvanized version with a bolted frame.

DELTA 159.1 CLEANER

DELTA 159 CLEANER屏幕area: 24 m2 kW

consumption: 11.50 kW

Required air volume: 3600 m3 /h

Delta 159.1清洁剂配备了循环空气单元,可用于预拆分和后载,可提供16,000 m3/h的总内空气量。


OPTIONAL ACCESSORIES

INLET HOPPER & BUFFER BINS

Inlet hopper and buffer bins can be supplied with the Delta cleaner. This helps to ensure an even distribution of product across the full width of the cleaner. Buffer bin capacity of up to 2.5 m3 can be installed, supported only by the frame of the cleaner. Further buffer bin capacity is available but will need additional external support.

粉丝

Aspiration can be supplied with the Delta cleaner; several different aspiration systems are available, and the solution for any application can be found within our range of fans.

SPOUTS

Spouting can be supplied with the Delta cleaner for easy connection to other equipment in the plant. Outlets on the Cimbria cleaners interconnect with the comprehensive Cimbria Q-spout system.

STAND

A stand can be supplied with the Delta cleaner to ensure a solid and steady foundation for the installation. A stand can help ensure the space needed to install conveyors for waste and clean product. Stands in different standard heights are available and customized stands can be offered to fit height requirements in a plant.

PLATFORM AND STAIRS

An access platform can be supplied with the Delta cleaner. This ensures safe access to all necessary areas of the cleaner. A platform will help ensure a safe environment for the operator and can help reduce the time needed for service and maintenance, as well as the time needed to change screens. Platforms in different layouts are available, and customized platforms can be offered to fit layout requirements in a plant.

DELTA 150 CLEANER with all optional accessories.

Download the Delta Cleaners 150 Series Brochure
